The SMI Bomb Basket With Trolley system is a TBRL-tested mobile blast suppression platform engineered for the safe containment, transportation, and controlled mitigation of suspected explosive devices in high-risk environments. Designed for EOD teams, airports, military installations, government infrastructure, and urban security operations, the system enables rapid bomb recovery and controlled fragment suppression even in congested or off-road terrain. Available in BCB 2.1 and BCB 3.1 configurations for 2 kg and 3 kg TNT equivalent threats.

Request a Quote All Blast Products

System Overview

Controlled Suppression.
Mobile Recovery.

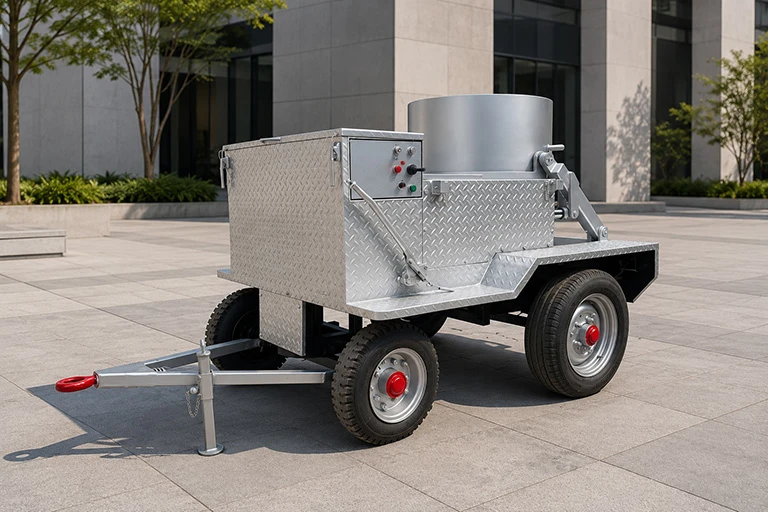

The SMI Bomb Basket With Trolley system is engineered to mitigate the blast impact of suspected explosive devices through controlled upward venting and fragment suppression. Unlike sealed blast containment vessels, the bomb basket is designed to prevent dangerous horizontal fragment projection while directing blast pressure upward through the top opening — significantly reducing risk to surrounding personnel and infrastructure.

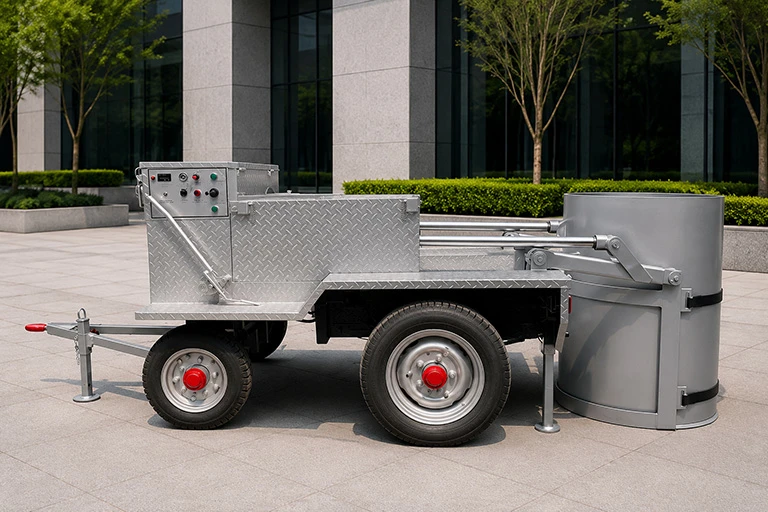

Integrated with a heavy-duty trolley platform and hydraulic loading mechanism, the system enables safe transportation and deployment during EOD and bomb recovery operations, including operations in congested urban zones, airports, critical infrastructure environments, and off-road terrain.

The platform is available in multiple operational configurations including BCB 2.1 and BCB 3.1 systems, tested for 2 kg and 3 kg TNT equivalent threats respectively.

Available Models	SMI BCB 2.1 · SMI BCB 3.1
Blast Rating	2 kg & 3 kg TNT Equivalent
Suppression Method	Controlled Upward Blast Venting
Fragment Protection	Prevents Horizontal Fragment Projection
Basket Construction	Bottom Closed Blast Basket
Basket Opening Diameter	25.5 inches (approx.)
Internal Height	30 inches (approx.)
Internal Volume	255.12 L (approx.)
Hydraulic System	Integrated Hydraulic Loading & Unloading
Trolley Configuration	4-Wheel Off-Road Platform
Ground Clearance	400 mm Minimum
Towing Compatibility	Jeep · SUV · Tactical Vehicle Compatible
Certification	TBRL / DRDO Tested

Key Features

Portable. Proven.
Field Ready.

Controlled Blast Suppression

The basket structure is engineered to suppress fragment dispersion and redirect explosive force upward through the open top section, significantly reducing horizontal blast hazards during controlled IED mitigation operations.

Hydraulic Loading Mechanism

Integrated hydraulic assistance enables safer, faster, and more controlled loading and unloading operations during bomb recovery scenarios, reducing manual handling risk for EOD personnel.

Mobility Across Difficult Terrain

The trolley platform is designed for congested urban environments, airport operations, off-road deployment, and hilly terrain. Its 4-wheel configuration and high ground clearance provide operational flexibility during emergency response missions.

Operational Variants

Choose The Right
Suppression Platform

BCB 2.1

2 KG TNT Equivalent

Basket Weight — 297 KG
Designed for controlled suppression up to 2 kg TNT equivalent
Suitable for airports, metro stations, urban EOD operations, and government facilities
Hydraulic trolley integration
TBRL / DRDO tested

BCB 3.1

3 KG TNT Equivalent

Basket Weight — 397 KG
Enhanced suppression capability for higher explosive loads
Designed for military, high-risk infrastructure, and advanced EOD deployment
Off-road capable trolley platform
TBRL / DRDO tested

Technical Specifications

Engineered For
Operational Deployment

The SMI Bomb Containment Basket combines a blast suppression basket with a hydraulic mobility platform engineered for safe transportation, rapid deployment, and controlled containment operations in high-risk EOD environments.

Bomb Basket

Basket Specifications

Blast Rating 2 Kg TNT Equivalent

Basket Weight Approx. 297 Kg

Opening Diameter Minimum 25.5 Inches

Inner Height Minimum 30 Inches

Fragment Direction Upward Controlled Venting

Construction Bottom Closed Containment Design

Hydraulic Trolley

Trolley Specifications

Mobility Jeep / SUV Tow Compatible

Ground Clearance Minimum 400 mm

Configuration 4-Wheel Stabilized Platform

Hydraulic System Integrated Loading Assistance

Trolley Weight Approx. 600 Kg

Dimensions 2.72 × 1.61 × 1.24 m
